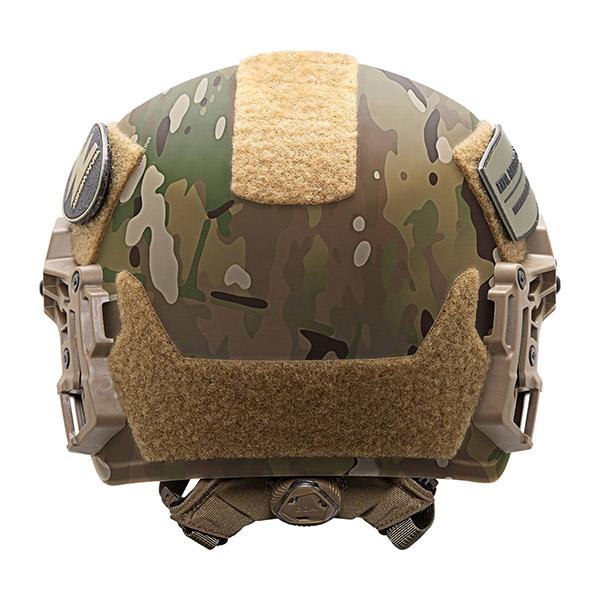

The EXFIL® Ballistic features a hybrid composite shell for increased strength and a unique geometry for optimal fit. An innovative, boltless CAM FIT™ retention quickly adjusts to individual head shapes, providing comfort and stability.
The Zorbium® foam liner protects against impact and allows for an overhead communications headband. Customizable fit is achieved through a set of moveable comfort pads.
A lanyard-compatible Wilcox® shroud* secures any standard NVG mount.
The EXFIL® Ballistic accessory rail system is compatible with all EXFIL® accessories, including the EXFIL® Ballistic Visor and the EXFIL® Face Shield.
Ballistic Performance
NIJ IIIA (NIJ STD 0106.01/0108.01)
Fragment Performance
17gr V50 ≥ 2400 ft/s (731 m/s)
Backface Deformation
9mm FMJ RN @ 1400 ft/s (425 m/s)
BFD < 25.4 mm all locations
Blunt Impact Performance
Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02) - average below 70G across all impacts and temperaturesMeets ACH Gen II Blunt Impact (AR/PD 14-01) and AEP 2902 Clause 4.1.1.1 Method H
| SIZE | COMPLETE SYSTEM | SHELL |
| SIZE 1 (M/L) | 2.6 lbs (1.18 kg) | 1.75 lbs (0.79 kg) |
| SIZE 2 (XL) | 2.75 lbs (1.25 kg) | 1.8 lbs (0.84 kg) |

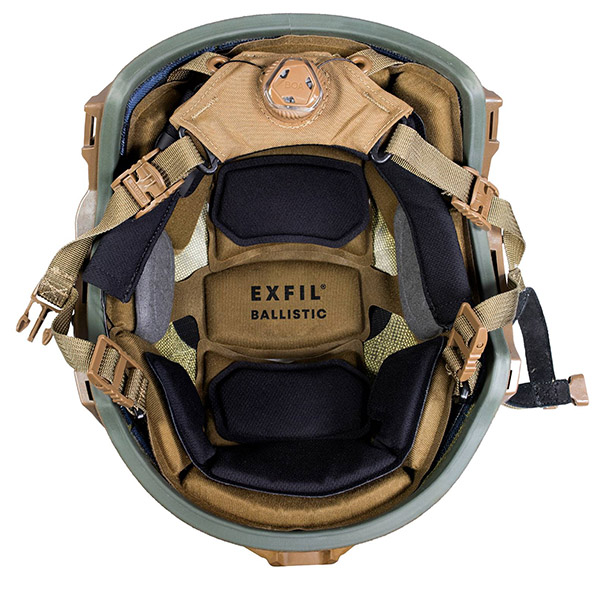

Zorbium® Foam Liner
- 16 customizable comfort pads in two thicknesses
- Removable center pad to easily accommodate overhead comms
- Replacement comfort pads available for purchase
NVG Shroud
- 3-hole Wilcox® W shroud
- Lightweight aerospace grade aluminum mount interface
- Compatible with Wilcox® NVG lanyard
- Compatible with most standardized NVG mount baseplates
Boltless CAM FIT™ Retention System
- Utilizes BOA® Fit System for optimized stability and fit
- Cam Lock sliders for one-handed adjustment and secure fit
- Left Eye Dominant (LED) option also available
NOTE: While the Wilcox® W shroud comes standard with the EXFIL® Ballistic, the NVG mount/interface required for attaching night vision devices to the helmet, such as the Wilcox® G24, is not included.
